Echohush Profile

decorative sound absorbing foam panel

Echohush Profile is a range of decorative sound absorbing foam panels made from combustion modified polyether foam, that offer diffusive properties as well as high noise reduction across a broad frequency range.

As the name suggests, the absorptive panels feature a variety of decorative profiled surface patterns that are sculpted to varying shapes and designs, to maximise surface area for exceptional acoustic performance while also offering a decorative finish.

In conjunction with leading laboratories and test facilities, Pyrotek have formulated and developed Profile foams to outperform traditional acoustic foams by controlling the cell size, porosity, density and the flow resistivity throughout the cell structure. With specialised flame retarders to the foam, the panels exhibit improved fire performance to meet UL94 fire ratings.

The panels work to reduce reverberant noise or ’echo’ and improving audio and voice clarity, making them a preferred choice for applications such as recording studios, home entertainment theatres, conference/meeting rooms or noisy areas such as restaurants, bars and cafes.

A choice of multiple colours using a specialised coating process is offered for additional surface protection and durability.

Echohush Profile can be used in conjunction with our other Echohush products to effectively absorb a broad range of frequencies and help control typical room noise disturbances like interfering echo or flutter, modal distortion and reverberation.

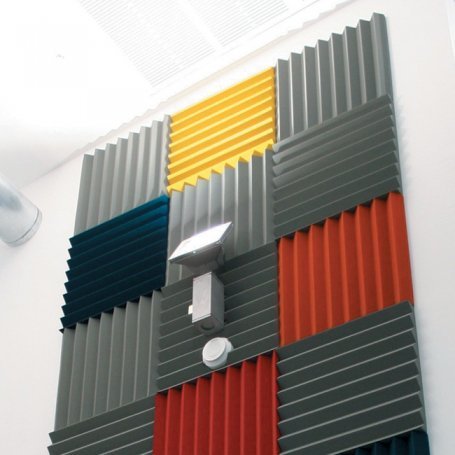

Echohush Profile application on a wall

Echohush Profile application on a wall

Technical data

Echohush Profile is a range of decorative sound absorbing foam panels made from combustion modified polyether foam, that offer diffusive properties as well as high noise reduction across a broad frequency range.

Please refer to the Technical Data Sheet (TDS) for more information.

Document downloads

Document title Document type Document language
Echohush Profile Technical Data Sheet English
Echohush Profile Installation Installation Guide English
Room Acoustics Brochure Brochure English
Room Acoustics Brochure (ZH) Brochure 中文 (Chinese)

Applications

  • Commercial: boardrooms, open plan offices, call centres etc.
  • Public areas: schools, churches, community centres, function rooms, museums etc.
  • Hospitality: cafes, hotels, bars, restaurants, etc.
  • Home: home theatre, lounge room, music rooms, mixing rooms, studios etc.
  • Specialist: radio / TV studios, sound recording studios etc.

Features

  • Combustion modified - high flame retardant
  • Absorption over a broad frequency range
  • Contoured foam diffuses more noise than standard flat foam
  • Hydrolysis resistant - prevents foam rot
  • Does not shed irritating fibres
  • Free from formaldehyde and phenolic resins
  • Specialised custom coating offering surface protection, UV resistance and durability
  • Decorative appearance combining acoustics and aesthetics to upscale any décor
  • Can be easily cut to various shapes and patterns to optimise aesthetic appearance
  • Easy installation - specialised backing board available for mounting product
  • Installation with backing board, offers flexibility to reposition product to other surfaces
  • Choice of plain foam finish or one of our 21 modern, standard colour choices

Installation

TIPS PRIOR TO INSTALLATION
1. Wall surfaces should be clean, smooth and dry.
2. Walls that are not plumb may cause misalignment.
3. If adhering to metal surfaces, use a degreaser before mounting panels.
4. Avoid mounting directly on top of electrical outlets or wires or contact with any sharp objects and edges. If needed, cut out adequate access holes around any outlets. Consider using electric knives for a professional cut.
5. Keep away from flame and heat sources.
6. Keep uncoated panels out of direct sunlight or UV light to avoid fading.
7. If using backing board, remove the plastic film covering one side of the board and use this side to bond the product with adhesive.

Note: Use our instructions as a general guideline. The responsibility to assess and compensate for application environment lies with the installer.

Refer to installation guide for more details.

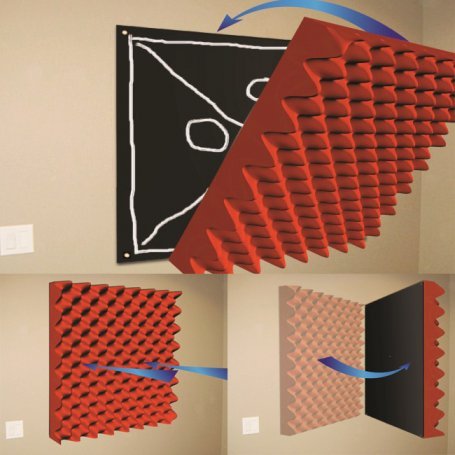

Echohush Profile is simple to install

Echohush Profile is simple to install
