TNF Marine

TNF Marine Fire Doors are used in marine vessels. Meeting individual requirements from all customers, TNF Marine Fire Doors are strong and durable to withstand any environment.

Fire doors are an integral part of all systems that require a fire-rating. At Pyrotek a solution can be tailored for any fire door requirements. Whether it is on a luxury craft, cruise ship, work boat or offshore industry. The right door with the right specifications can be recommended and supplied to you to meet all needs. With over 250,000 fire doors sold worldwide, this system is a world leader in supplying fire rated doors with demand ever increasing.

With simple cored design, multiple facing options and multiple ways of installation there are hundreds of different door combinations to suit, from C-Class right up to automated double A-60 fire rated doors available, meaning the right door for all situations.

Contact your local Pyrotek® office for more information on specialty marine products.

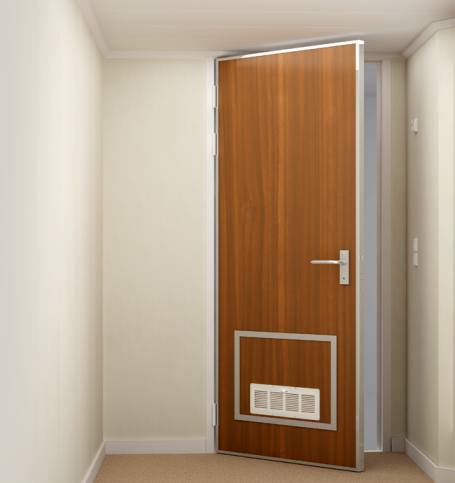

Fire door

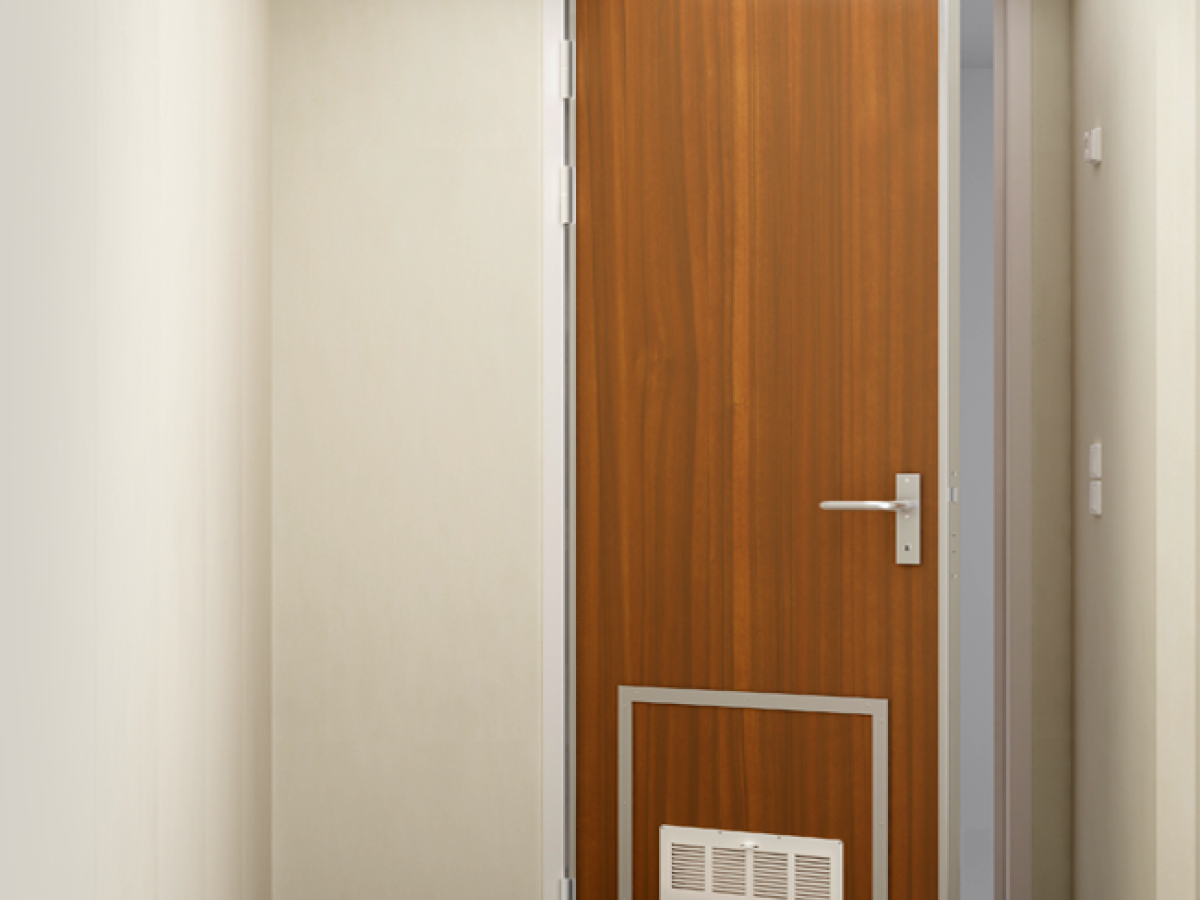

Fire door

Technical data

Door_type
name

 Door leaf
thickness (mm)

Sound
reduction
RW (dB)

Core density
(kgm3)

 Maximum clear
openings
(W x H) 		 Estimated weight
(700 x1900)
C-Class  TBA  TBA  TBA  TBA  TBA
B-15   40  33  150 900 x 2080  49 kg
B-15 Sound Reduction  39 38 150 900 x 2080 60 kg
B-15 High Sound Reduction  39 43   150 840 x 1960  60 kg
B-30  40  -  250 900 x 2098  70 kg
B-30 High Sound Reduction  50  43  150 900 x 2098  70 kg
 A-15  39  -  150 1000 x 2100  65 kg
A-60  53.5  44  150 990 x 2095  92 kg
A-60 High Sound Reduction  53.5  48  150 990 x 2095  92 kg

A-60 Spray Tight External

  53.5  48  150 990 x 2095

95 kg























C-Class and B-15 Doors available as: Single,Over Panel, Louver, Window, Kick out Panel, Under stairs, Double Door
B-15 Sound Reduction Door available as: Single,Over Panel, Louver, Window, Kick out Panel
B-15 Sound Reduction Door and B-15 High Sound Reduction Door available as: Single,Over Panel, Louver, Window, Kick out Panel
B-30 Doors available as: Single
B-30 High Sound Reduction available as: Single, Window
A-15 available as: Single, Window, Hose port, Rounded corner, Double door
A-60 available as: Single, Window, Hose port, Gas tight, Rounded corner, Double door
A-60 High Sound Reduction available as: Single, Rounded corner
A-60 Spray Tight External available as: Single, Window, Double Door

Finish options - PVC, Powder Coated, Laminate or SUS

A-Class and C-class sliding doors are also available with a mere 53mm leaf. The sliding door can as well be equipped with driving automated or pneumatic systems for bridge control and is ideal in areas where a hinged door would have little room to completely swing open. Double doors also available.



Document downloads

Document title Document type Document language
Marine Summary Brochure English
Marine Summary (ZH) Brochure 中文 (Chinese)
Inexa TNF Brochure English

Applications

  • Cruise ships
  • Freight ships
  • Most off-shore vessels

Features

  • Flexible solutions for the door frame
  • Provides a quiet and private environment
  • Tough and durable

Installation

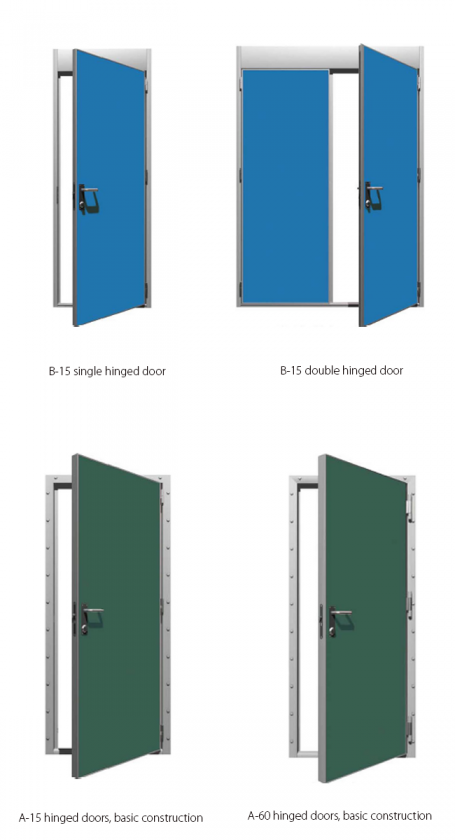

B 15 Doors
Doors can be installed in wall panels or steel bulkheads. Also installation in double walls are possible.

• Single hinged 41 mm doorleaf made of steel plate with mineral woolcore
• Double hinged 52mm doorleaf made of steel plate with mineral woolcore
• double doors with two-point latch on in-active doorleaf
• aluminium or steel trimlist fastened with st.st. rivets
• frame made of steel profile
• top piece or top part as frame profile
• counter frame for wall installation
• st.st. hinges, screwed to frame and doorleaf
• st.st. sill- and striker plate
• reinforcement for doorcloser and magnet
• cut out for lock

A Class Doors
Doors con be installed in steel bulkhead by welding or bolts

A 15 hinged doors, basic construction

• 38mm doorleof mode of steel plate with mineral wool core
• steel trimlist fastened with st.st. rivets
• frame mode of steel profile
• st.st. hinges, sill plate and striker plate
• reinforcement for doorcloser and magnet
• cut out for lock

A 60 hinged doors, basic construction

• 48mm doorleof mode of steel plate with mineral woe core
• double doors with two-point latch on in-active doorle with recessed st. st. handle
• steel trim list fostend with st.st. rivets
• frame mode of steel profile
• 3-port hinges with boll bearing and grease nipples
• reinforcement for doorcloser and magnet
• cut out for lock
• double door with 3-point cylinder lock in active doorl
