Subdue Range

lightweight multilayered acoustic panels

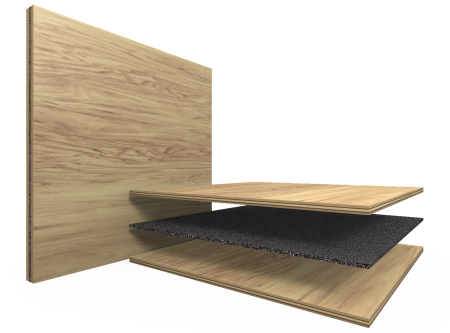

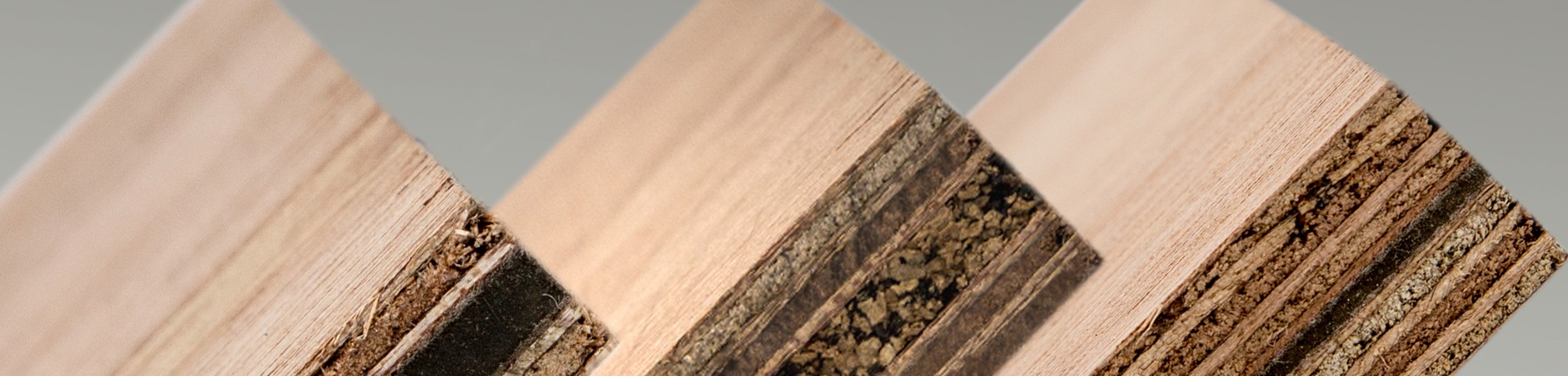

Subdue® is a lightweight multilayered panel offering exceptional acoustic properties. The outer layers of the sandwich panel are constructed from a choice of lightweight, but rigid and strong high-quality materials, such as plywood with a range of sound insulating inner core materials. The panels are specially designed to optimise acoustic solutions at lower weights and are an ideal choice in weight-sensitive applications where strength and good sound insulation properties are required. The panels can be supplied in standard or custom-designed modular sizes.

Subdue® X

Subdue® X

Technical data

Subdue® L is a lightweight multilayered panel offering exceptional acoustic properties.

Subdue® M is a multi-layered damped noise barrier panel constructed from two outer layers of marine grade Okoume ply, compliant to BS 1088, with inner core comprising a damped viscoelastic layer.

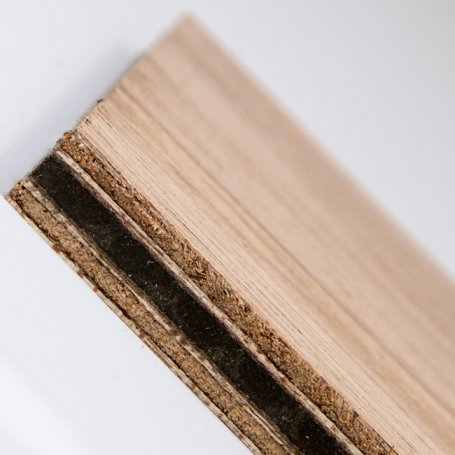

Subdue® X is a multi-layered acoustic panel constructed from two outer layers of marine grade Okoume ply, compliant to BS 1088, with inner core comprising a dense, damped viscoelastic layer offering excellent noise transmission loss.

Please refer to the Technical Data Sheet (TDS) for more information.

Document downloads

Document title Document type Document language
Subdue L Technical Data Sheet English
Subdue L (ZH) Technical Data Sheet 中文 (Chinese)
Subdue M Technical Data Sheet English
Subdue M (ZH) Technical Data Sheet 中文 (Chinese)
Subdue X Technical Data Sheet English
Subdue X (ZH) Technical Data Sheet 中文 (Chinese)
Subdue NC Technical Data Sheet English
Subdue NC (ZH) Technical Data Sheet 中文 (Chinese)
Subdue Install Guide Installation Guide English
Subdue Install Guide (ZH) Installation Guide 中文 (Chinese)
Marine Summary Brochure English
Marine Summary (ZH) Brochure 中文 (Chinese)
Subdue Brochure Brochure English
Subdue Brochure (ZH) Brochure 中文 (Chinese)

Applications

  • Used to construct floor, partition walls and lining panels
  • Particularly suited for high privacy areas such as interrogation rooms, Master State Rooms, boardrooms
  • Extensively specified for interior marine construction e.g. bulkheads, cabin partitions, floating floors
  • Flooring systems in the rail and motor coach industry to reduce road and track noise
  • Used in the audio industry to construct high quality speaker enclosures
  • Fabrication of acoustic doors
  • Used in conjunction with an isolation mount to create floating wall, floor and ceiling systems

Features

  • Available in a range of lightweight marine grade plywood, tested to BS 1088
  • Tested for low formaldehyde emission
  • All panels have been tested to provide differing acoustic properties to suit differing designs
  • Simple to saw-cut, fabricate and install using conventional woodworking tools
  • Tested and proven to have superior damping properties over standard plywood and similar panels
  • Thin panels possess high noise reduction properties
  • Bonded using water resistant glues, Weather and Boil Proof (WBP) tested, according to BS1088
  • Available in preformed cut panels and varying constructions (offering weight savings) to suit differing designs
